Trendnet AC1750 Dual Band PoE Access Point

$183.81 $244.91

SKU: TEW-825DAP
MODEL: AC1750 Dual Band PoE Access Point
Product Description Equip your business with a manageable and cost-effective AC1750 wireless network with TRENDnet’s AC1750 Dual Band PoE+ Access Point,model TEW-825DAP. Broadcast concurrent 1300 Mbps WiFi AC and 450 Mbps WiFi N networks. Relieve congestion and overcrowding on the 2.4 GHz band by employing band steer technology. Power the...
Quantity
Add to Wishlist

Product Description

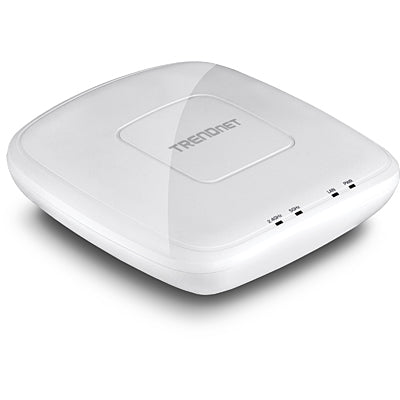

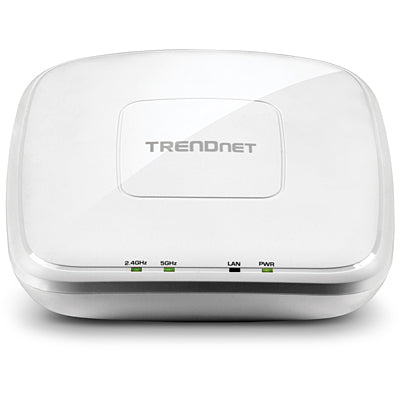

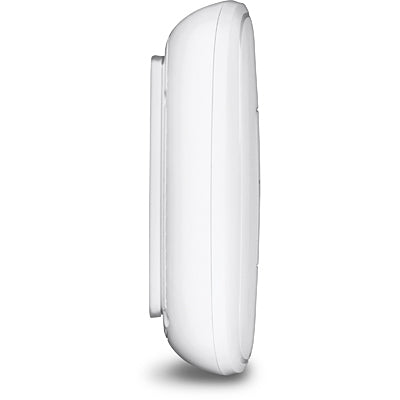

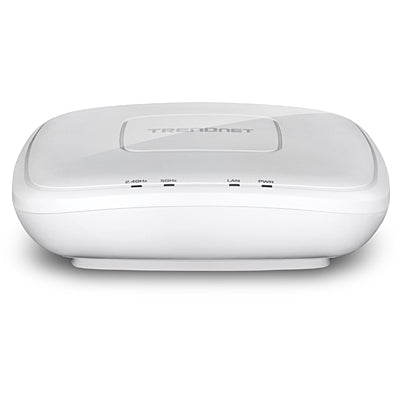

Equip your business with a manageable and cost-effective AC1750 wireless network with TRENDnet’s AC1750 Dual Band PoE+ Access Point,model TEW-825DAP. Broadcast concurrent 1300 Mbps WiFi AC and 450 Mbps WiFi N networks. Relieve congestion and overcrowding on the 2.4 GHz band by employing band steer technology. Power the access point with the included AC adapter, or connect via PoE+ for installation flexibility. The low-profile design blends into most environments and includes a convenient ceiling / wall mounting plate.

Product Details

Access Point Flexibility
Concurrent 1300 Mbps WiFi AC and 450 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.



Band Steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band.



PoE+
Saves installation time and costs with Gigabit PoE+ support.



Multi-Language
Multi-Language Interface: English, Spanish, French, German, and Russian



Power over Ethernet (PoE+)
Saves installation time and costs with Gigabit PoE support



Concurrent Dual Band
AC1750: concurrent 1300 Mbps WiFi AC + 450 Mbps WiFi N bands



Multiple AP Modes
Supports Access Point (AP), Client, WDS+AP, WDS Bridge, WDS Station, and Repeater modes



AP Utility
The included Windows-based utility reduces WiFi configuration and setup time



Gigabit Port
Gigabit PoE+ LAN port maintains high performance connections to the wired network



Wireless Coverage
Extended wireless coverage with MIMO antenna technology



Encrypted Wireless
Supports wireless encryption up to WPA2



Band Steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band



WiFi Traffic Shaping
Manage traffic allocation per SSID for each band separately



Multiple SSIDs
Create up to 8 SSIDs per band (16 total)



IPv6
IPv6 network support



Housing Design
Off-white low-profile design



LED Control
Reduce product visibility by disabling LED indicators



Mounting Plate

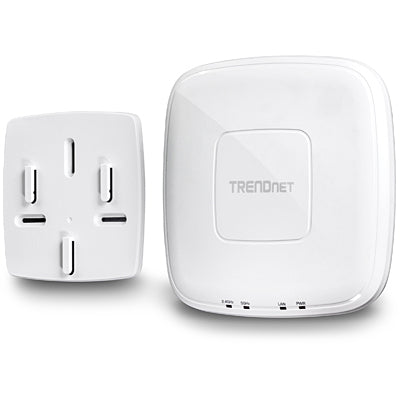

Included ceiling / wall mounting plate for flexible installation





Product Specifications

Standards

IEEE 802.1QIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3atIEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n (up to 450 Mbps)IEEE 802.11ac (up to 1300 Mbps)

Hardware Interface

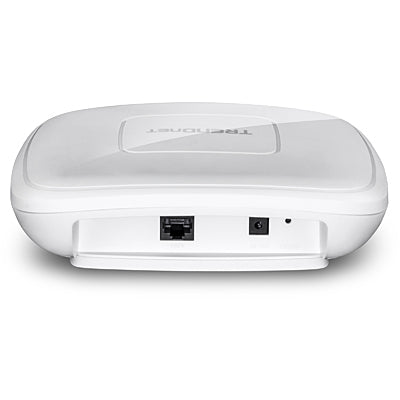

1 x PoE+ Gigabit LAN portPower port (optional non-PoE installation)Reset buttonLED indicatorsMounting plate

Special Features

IP30 rated housing (with mounting plate installed)Concurrent Dual bandBand SteeringWiFi traffic shaping802.1Q VLAN assignment per SSIDIPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC / DHCPv6)Multi-Language interface, English, French, Spanish, German, RussianLEDs on / offCaptive Portal (Coovachilli)

Operation Modes

Access PointClientWDS APWDS BridgeWDS StationRepeater

Management / Monitoring

Web based managementSoftware UtilitySNMP v1 / v3STPEvent loggingPing testTracerouteCLI

Utility OS Compatibility

Windows® 10, 8.1, 8, 7, Vista, XP

Access ControlWireless encryption:

WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUSMAC filterMaximum client limit

QoS WMMTraffic shaping per

SSID  SSIDUp to 8 SSIDs per wireless band (16 total)

Frequency

2.4 GHz: 2.412 - 2.472 GHz5 GHz: 5.180 – 5.825 GHz

Wireless Channels

2.4 GHz: FCC: 1-11, ETSI: 1 – 135 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100,104,108,112,116, 132, 136, 140)*

*ModulationDBPSK / DQPSK / CCK for DSSS techniqueBPSK / QPSK / 16-QAM / 64-QAM / 256-QAM for OFDM technique

Antenna Gain

2.4 GHz: 3 x 4 dBi5 GHz: 3 x 4 dBi


Wireless Output Power / Receiving Sensitivity

802.11a: FCC: 23 dBm, ETSI: 21 dBm (Max.) / -65 dBm (typical) @ 54 Mbps802.11b: FCC: 22 dBm (Max.), CE: 8 dBm (Max) / -83 dBm (typical) @ 11 Mbps802.11g: 17 dBm (Max.), CE: 10 dBm (Max.) / -65 dBm (typical) @ 54 Mbps802.11n: FCC: 17 dBm (Max.), CE: 11 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 2.4 GHz802.11n: FCC: 23 dBm, CE: 21 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 5 GHz802.11ac: FCC: 23 dBm, CE: 21 dBm (Max.) / -54 dBm (typical) @ 1300 Mbps

Power Input:

100 – 240 V AC, 50 - 60 Hz / Output: 12 V DC, 1.5 A external power adapter (non-PoE installation)Consumption: 12.5 Watts (max.)

Operating Temperature

0 – 40 °C (32 – 104 °F)

Operating Humidity Max.

95 % non-condensingCertificationsCEFCC


Dimensions

187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)

Weight

416 g (14.7 oz.)

3 years Limited warranty
