Trendnet 16-Port 10/100 Mbps 220 Watt AV PoE+ Switch

$541.96 $752.25

SKU: TPE_1016L
MODEL: 16-Port 10/100 Mbps 220 Watt AV PoE+ Switch
Product Description TRENDnet’s 16 Port Ethernet 220 Watt AV PoE+ Switch, model TPE-1016L, offers 16 x PoE+ Ethernet ports with a total Power budget of 220 Watts. View total power, available power, and power-per-port with a convenient front-panel 4-digit seven-segment LED display. Rear panel Ethernet ports and front panel LEDs...
Quantity
Add to Wishlist

Product Description

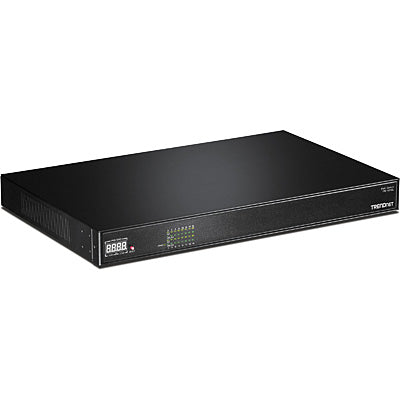

TRENDnet’s 16 Port Ethernet 220 Watt AV PoE+ Switch, model TPE-1016L, offers 16 x PoE+ Ethernet ports with a total Power budget of 220 Watts. View total power, available power, and power-per-port with a convenient front-panel 4-digit seven-segment LED display. Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

Product Details

PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 Watts), and PoE+ (30 Watts) cameras (or other PoE devices) and supplies the required amount of power automatically.

PoE Power
A 220 Watt PoE power budget supplies up to Sixteen Power over Ethernet devices with PoE power.



Ethernet Networking
Sixteen 10/100 Mbps Ethernet ports produce a 3.2 Gbps switching capacity to support edge network installations.



AV Switches: Sample Applications

Application 1: Restaurants and Bars

In most business environment’s, TRENDnet’s AV switches will serve a dual purpose. The switches allow business owners to simultaneously manage AV equipment, IP surveillance cameras, and wireless access points.



Application 2: Homes with Multi-Room AV

TRENDnet AV Series Switches easily expands a home’s existing wired network for high bandwidth devices, especially those devices dedicated to multimedia sharing and home surveillance.




Application 3: NVR and AV Switches Solution

With both sets of ports on the back, TRENDnet AV Series Switches are ideal for use with TRENDnet NVRs. The AV switches are equipped to provide all the power needed to run several TRENDnet surveillance cameras simultaneously.





Hardware Design

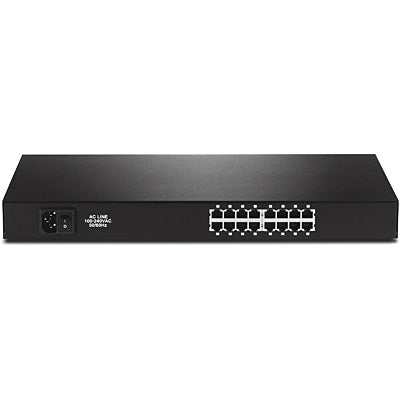

Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution

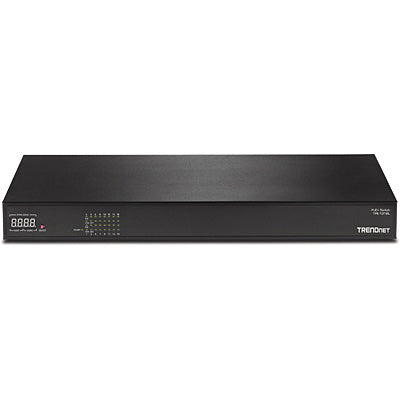

7-Segment LED Display
View total power, available power, and power-per-port



Power Budget
Up to 220 Watts



Rack Mountable
Standard 19” 1U design (brackets included)



Fanless
Fanless design reduces energy consumption and operating noise.

Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3afIEEE 802.3at

Device Interface16 x 10/100 Mbps Ethernet portsLED indicators4-Digit Seven-Segment LED Display

Data Transfer RateEthernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)

PerformanceBroadcast storm control

Data RAM Buffer: 400 KBSwitch Fabric: 3.2 GbpsMAC

Address Table: 4 K entriesForwarding rate: 2.3 Mpps (64-byte packet size)PowerInput: 110 – 240 V AC, 50/60 HzConsumption: 7 Watts (Max. without PD)PoEPoE overall budget: 220 WattsPoE budget per port: 30 WattsPin 3,6 for power+ and pin 1,2 for power- (mode A)Over current protectionShort circuit protection

Operating Temperature0 – 40 °C (32 – 104 °F)

Operating HumidityMax. 90% non-condensing

Dimensions440 x 280 x 44 mm (17.3 x 11 x 1.7 in.)

Weight3.5 kg (7.7 lbs.)

CertificationsCEFCCUL

3 years Limited warranty
