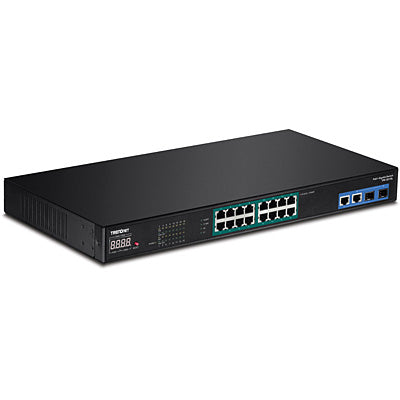

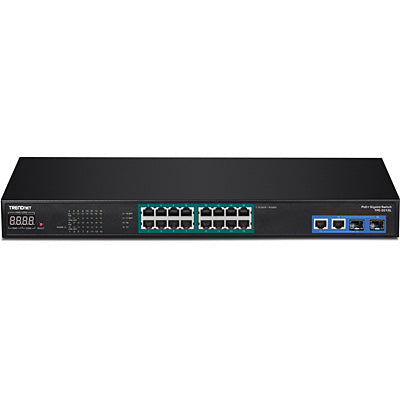

Trendnet 18-Port Gigabit NVR PoE+ AV Switch with LED Display

$650.10 $869.79

SKU: TPE_3018L
MODEL: 18-Port Gigabit NVR PoE+ AV Switch with LED Display
Product Description TRENDnet's 18-Port NVR PoE+ Switch, model TPE-3018L, is designed for use with a 16-channel NVR surveillance system. Users are able to connect all 16 IP cameras to the switch, while still providing 2 shared uplink ports for dedicated connections to your network, NVR, and / or NAS devices....
Quantity
Add to Wishlist

Product Description

TRENDnet's 18-Port NVR PoE+ Switch, model TPE-3018L, is designed for use with a 16-channel NVR surveillance system. Users are able to connect all 16 IP cameras to the switch, while still providing 2 shared uplink ports for dedicated connections to your network, NVR, and / or NAS devices. This switch features a 220 watts total power budget, providing you with enough power for even the most demanding surveillance applications. Use the convenient front-panel LED display to view total power, available power, and power-per-port. Rack mountable hardware design and front-panel LEDs easily integrate into your existing NVR and IP surveillance solutions.

Product Details

NVR Switch
16 Gigabit PoE+ ports allow users to connect 16 IP cameras while still providing 2 shared Gigabit uplink ports (RJ-45 / SFP) for dedicated connections to your network, NVR and / or NAS devices.


PoE Power
A 220 watt PoE+ power budget supplies up to 16 Power over Ethernet devices with PoE power.


Gigabit Networking
Gigabit ports produce a 36 Gbps switching capacity and support Jumbo Frames up to 10 KB.

16 x Gigabit PoE+ ports
2 x Shared Gigabit Uplink Ports (RJ-45 / SFP)
220 watts PoE power budget
36 Gbps switching capacity
1U rack mountable (brackets included)
Convenient front-panel 4-digit seven segment LED display

Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3zIEEE 802.3afIEEE 802.3at

Device Interface16 x Gigabit PoE ports2 x Gigabit Ethernet ports and 2 x shared SFP slotsLED indicators4-digit Seven-Segment LED Display

Data Transfer RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)Gigabit: 2000 Mbps (full duplex)

PerformanceBroadcast storm controlAuto-learning network configurations

Data RAM Buffer: 512 KBSwitch Fabric: 36 GbpsMAC Address Table: 8 K entriesForwarding rate: 26.7 Mpps (64-byte packet size)Jumbo Frame: 10 KB

PowerInput: 110 – 240 V AC, 50 / 60 HzConsumption: 10 watts (Max. no PD)

PoEPoE budget: 220 wattsPoE budget per port: 30 wattsOver current protectionShort current protection

Operating Temperature0 – 40 °C (32 – 104 °F)

Operating HumidityMax. 90% non-condensing

Dimensions440 x 280 x 44 mm (17.3 x 11 x 1.7 in.)

Weight3.5 g (7.7 lbs.)

CertificationsCEFCCUL

3 years Limited warranty
