Trendnet 2-Port Industrial Outdoor Gigabit UPoE Extender

$646.62 $926.30

SKU: TI_EU120
MODEL: 2-Port Industrial Outdoor Gigabit UPoE Extender
Product Description TRENDnet’s 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of...
Quantity
Add to Wishlist

Product Description

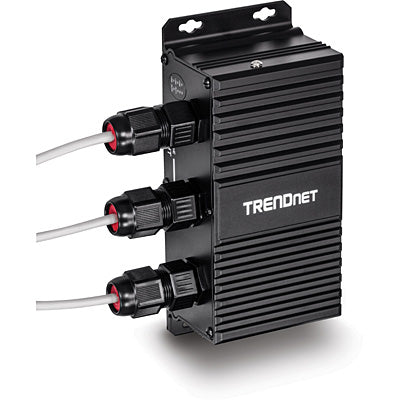

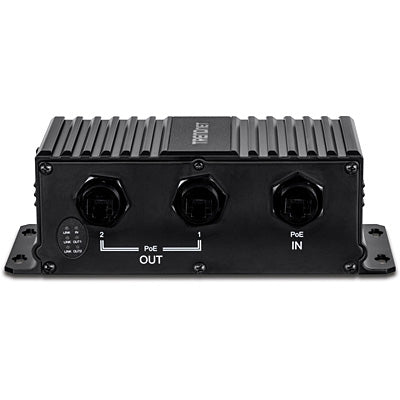

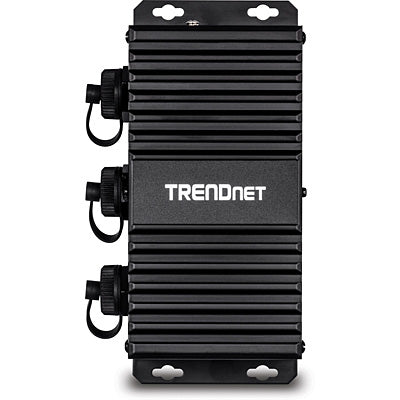

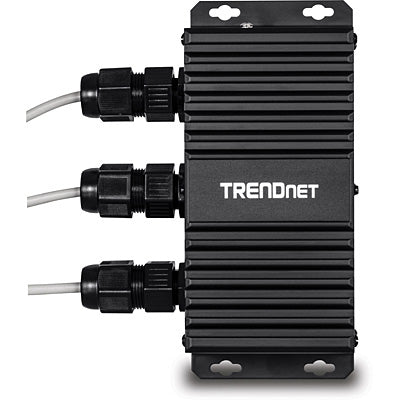

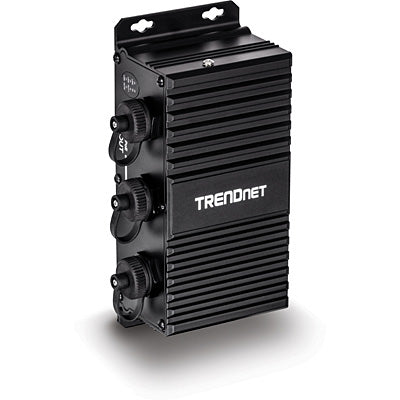

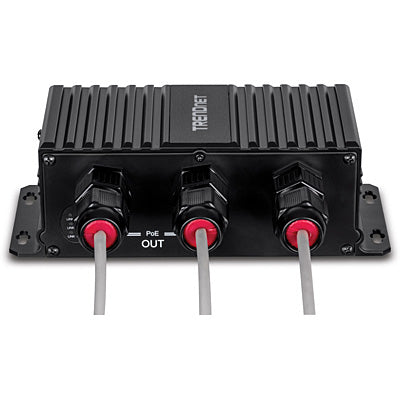

TRENDnet’s 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

Product Details


UPoE Power
Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices**



Gigabit Ports
Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.



Outdoor Rated
Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°– 75° C (-40° – 167° F).



Extension Distance : Extends a PoE/PoE+/UPoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE/PoE+/UPoE : Auto detects a PoE (15.4W), PoE+ (30W), and UPoE (60W) network connections

Gigabit Ports : 1 x gigabit UPoE input port, 2 x gigabit UPoE output ports, and 64W PoE budget with 95W UPoE input
1 x gigabit UPoE input port, 2 x gigabit PoE+ output ports, and 46W PoE budget with 60W UPoE input

Daisy Chain : Connect up to 4 units for a PoE network extension of up to 500m (1640 ft.).*

PoE Powered : No external power required—saves installation time and cost

Outdoor Ready : Rugged IP67 outdoor weather rated housing

Product Specifications



StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3afIEEE 802.3atIEEE 802.3bt draft

Device Interface1 x IP67 weather rated gigabit UPoE input port2 x IP67 weather rated gigabit UPoE output portsLED indicators

Data Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)Gigabit: 2000Mbps (full duplex)

PerformanceRAM Buffer: 1MBMAC Address Table: 8KJumbo Frame: 10KB

Special FeaturesIP67 rated housingWall mountableUPoE supportPowerPD

power input: 30W/60W/95WPoE 15W/30W/60W per PSEPoE Budget: 64W Max.Consumption: 3W Max. (without PoE)

PoE Power Output
PoE Input Max PoE Output
95W 64W
60W 46W
30W 22W
Single Port Daisy Chain
Number of Daisy Chains From PSE Max. PoE Output
1 (up to 100m) 95W Input: 64W
60W Input: 46W
30W Input: 22W
2 (up to 200m) 95W Input: 45W
60W Input: 34W
30W Input: 16W
3 (up to 300m) 95W Input: 35W
60W Input: 28W
30W Input: 7W
4 (up to 400m) 95W Input: 29W
60W Input: 22W
30W Input: 0W

Operating Temperature-40° – 75° C (-40° – 167° F)

Operating HumidityMax. 95% non-condensing

Dimensions165 x 62 x 112mm (6.5 x 2.4 x 4.4 in.)

Weight 834g (29.4 oz.)

CertificationsCEFCCEN60950-1IEC 60068-2-27 (Shock)IEC 60068-2-32 (Freefall)IEC 60068-2-6 (Vibration)

3 years Limited warranty
