Trendnet 20-Port Gigabit Web Smart Switch

$231.40 $309.03

SKU: TEG-204WS
MODEL: 20-Port Gigabit Web Smart Switch
Product Description TRENDnet’s 20-Port Gigabit Web Smart Switch, model TEG-204WS, delivers advanced management features with a 40Gbps switching capacity. Advanced traffic management, access management controls, troubleshooting, and monitoring protocol support makes this switch a powerful backbone solution for SMB networks. Web Smart Management Provides an easy-to-use web-based GUI management for...
Quantity
Add to Wishlist

Product Description

TRENDnet’s 20-Port Gigabit Web Smart Switch, model TEG-204WS, delivers advanced management features with a 40Gbps switching capacity. Advanced traffic management, access management controls, troubleshooting, and monitoring protocol support makes this switch a powerful backbone solution for SMB networks.

Web Smart Management


Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility


Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

High-Speed SFP


Offers four shared gigabit SFP slots to allow for long distance fiber optic connections.


Product Details


Hardware Design

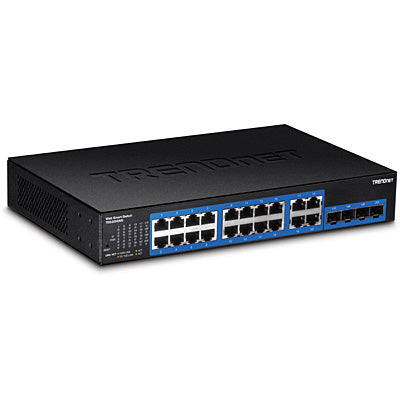

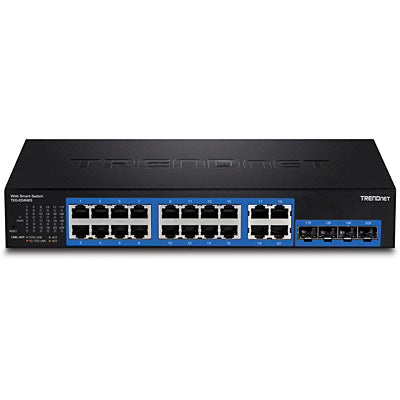

Fanless rack mountable 1U metal housing features 16 gigabit ports and 4 shared gigabit ports (RJ-45/SFP).

IPv6 Ready


This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management


A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting


A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control


Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring


RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions



Specifications

Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az

Device Interface
16 x Gigabit ports
4 x shared Gigabit ports (RJ-45/SFP)
LED indicators

Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)

Performance
Switch fabric: 40Gbps
RAM buffer: 512KB
MAC Address Table: 8K entries
Jumbo Frames: 10KB
HOL Blocking Prevention
Forwarding rate: 29.8Mpps (64-byte packet size)

Management
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB
IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB

Spanning Tree
IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP

Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN
Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)

Multicast
IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries

Port Mirror
RX, TX, or Both
One to one

Encryption
802.1X Port-Based Network Access Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)

Compatibility
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Special Features
Fanless Design
IPv6
802.3az power saving
Rack mountable

Power

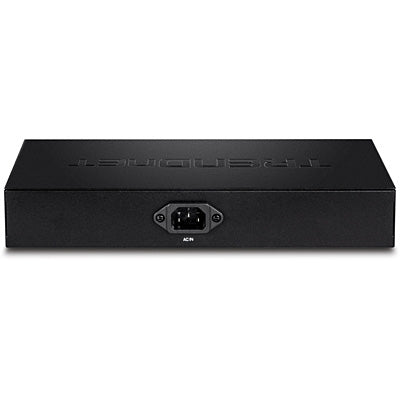

Input: 100 - 240V AC, 50/60Hz, internal power supply
Consumption: 14.6 Watts (max.)

MTBF
836,519 hours

Operating Temperature
-5 – 50°C (23 - 122°F)

Operating Humidity
Max. 95% non-condensing

Dimensions
280 x 180 x 44mm (11 x 7 x 1.74 in.)
Rack mountable 1U height

Certifications
CE
FCC
UL
