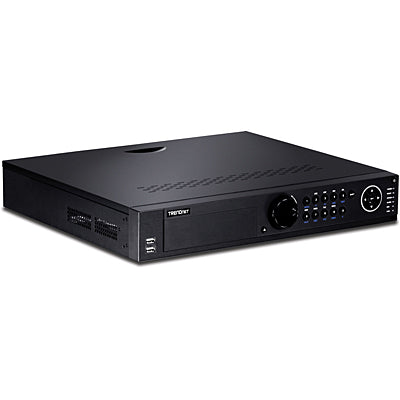

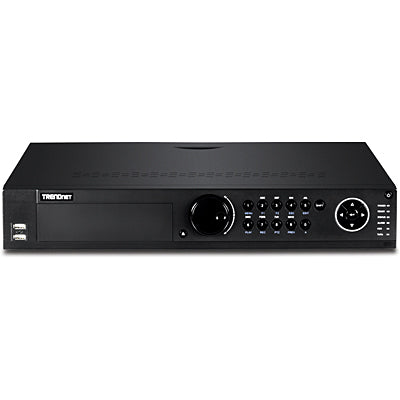

Trendnet 32-Channel HD NVR
Product Description

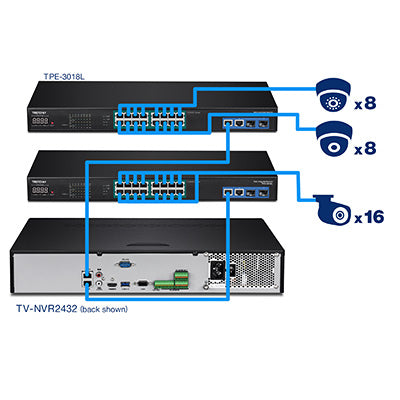

TRENDnet’s 32-Channel HD NVR, model TV-NVR2432, offers a comprehensive rack mountable video display, storage, and management solution. The NVR networks up to thirty two cameras* and auto-recognizes TRENDnet models. Install up to 24 TB of storage (hard drives not included)** to record continuous or event-based video from sixteen HD cameras***. The TV-NVR2432 features advanced video playback with free iOS® and Android™ apps.
Product Details
1080p HD NVR
This 1080p HD NVR supports up to a 24 TB hard drive and networks up to 32 network cameras-hard drive, cameras, and display sold separately.
Easy Installation
The NVR auto-recognizes TRENDnet cameras* - simply connect compatible TRENDnet cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.
32-Channel network video recorder
Manage up to 32 TRENDnet cameras*
Concurrent 1080p HD video recording for all channels
Four 3.5” SATA II bays support up to 24 TB of storage (HDDs not included)**
Continuous or event-based 1080p HD recording***
Advanced video playback
Rack mountable
Supports ONVIF compliant network camera
IPView Mobile App
Product Specifications
Video Output
HDMI / VGA
Resolution:
Audio
Line-in with RCA connector (2.0Vp-p, 1 kΩ)
Line-out with RCA connector
Recording
32-channel simultaneous recording up to 1080p 30 fps
4 SATA interface for HDD or SSD up to 6 TB storage each
Playback
Playback resolution: 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab

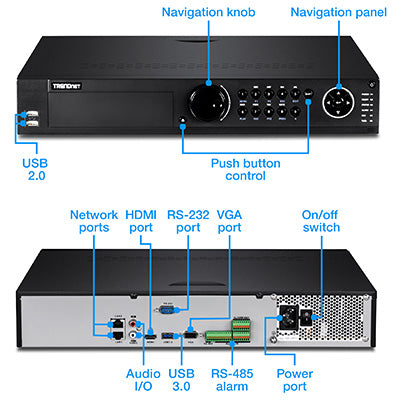

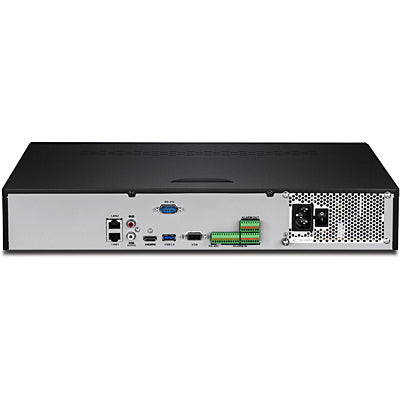

Device Interface
2 x Gigabit network port
2 x USB 2.0, 1 x USB 3.0
HDMI port
VGA port
Analog audio in / out port
Power port
LED indicators (Power, Storage, and Network)
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2
HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature
-10 - 55 °C (14 - 131 °F)
Operating Humidity
Max. 90% non-condensing
Certifications
CE
FCC
UL
Dimensions
440 x 390 x 70 mm (17.3 x 15.4 x 2.8 in.)
Weight
4.3 kg (9.4 lb.)
Power
Input: 100 – 240 V AC 50/60 Hz
Power consumption:
Management Interface
Multi-language support: English, French, German, Portuguese, and Spanish
Live view: Simultaneous 1x1, 2x2, 3x3, 1+7, 1+5, 4x4, 5x5, 32x1 views or auto switch single view
Scheduled recording: continuous and motion detection with optional holiday exceptions.
Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss.
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import / export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
TRENDnet IP View App
Free iOS® and Android™ app
View your NVR video on your mobile device
Take snapshots
Zoom
