Trendnet 8-Port 10/100 Mbps PoE+ Switch

$204.74 $256.86

SKU: TPE_T80H
MODEL: 8-Port 10/100 Mbps PoE+ Switch
Product Description The 8-Port 10/100 Mbps PoE+ Switch, model TPE-T80H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 125 Watt power budget. A convenient on/off...
Quantity
Add to Wishlist

Product Description

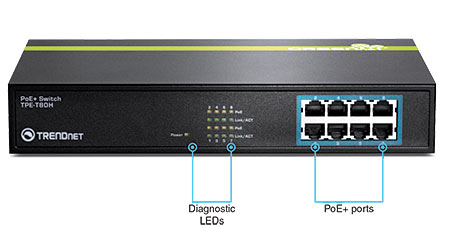

The 8-Port 10/100 Mbps PoE+ Switch, model TPE-T80H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 125 Watt power budget. A convenient on/off button is located on the back of the switch and a rack mount kit is included.

Product Details


TPE-T80H (Version v1.0R)
8 x 10/100 Mbps PoE+ ports
Up to 30 Watts per port with a 125 W total power budget
1.6 Gbps switching capacity
Rack mount kit included
Use with TRENDnet’s PoE Splitter to network and power non-PoE devices

Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3af (15.4 Watts/port)IEEE 802.3at (30 Watts/port)IEEE 802.3az

Device Interface8 x 10/100 Mbps PoE/PoE+ PortsLED indicatorsPower switchData Transfer RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

PerformanceData Ram Buffer: 160 KBSwitch Fabric: 1.6 GbpsMAC Address Table: 4K entriesForwarding rate: 1.19 Mpps (64-byte packet size)

Special FeaturesRack mount kit includedGREENnet energy saving technologyPowerInternal Power SupplyInput: 90-260 V AC, 50/60 Hz, 1 AOutput: 48 V DC, 50/60 Hz, 0.6 A

ConsumptionMax.: 130 WattsPoE budget: 125 WattsPoE+pin 1,2 for power+ and pin 3,6 for power- (mode A)

Operating Temperature0 – 40 °C (32 - 104 °F)

Operating HumidityMax. 90% non-condensing

Dimensions263 x 160 x 44 mm (10.35 x 6.30 x 1.73 in.)

Weight1.8 kg (3.96 lbs.)

CertificationsCEFCC

3 years Limited warranty
