Trendnet Intelligent 1000Base-T to 1000Base-LX Dual Wavelength Single Mode SC Fiber (60 km / 37.3 miles)

$1,208.26 $1,732.67

SKU: TFC-1000S60D3
MODEL: Intelligent 1000Base-T to 1000Base-LX Dual Wavelength Single Mode SC Fiber (60 km / 37.3 miles)
Product Description The TFC-1000S60D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 60 km (37.3 miles). This module must be used with...
Quantity
Add to Wishlist

Product Description

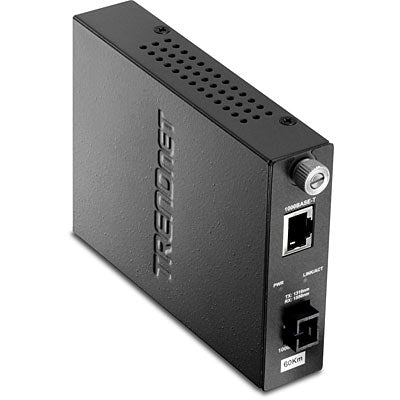

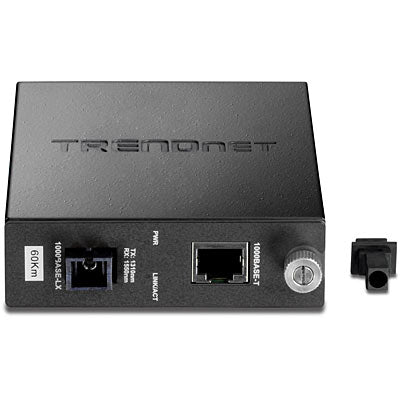

The TFC-1000S60D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 60 km (37.3 miles). This module must be used with the TFC-1000S10D5 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.

Product Details

Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port
Provides Dip switch to set: Fiber (Forced / Auto-Negotiation), LLR (Enable / Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for FX port
Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link / Activity
Wall mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Specifications

Standard
IEEE802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX

Supported Frame Size
Standard Ethernet up to 10 Kbytes

Network Media
1000Base-T: Cat. 6 EIA / TIA-568 100-ohm UPT / STP, up to 100 m
1000Base-LX: Single-mode fiber optic cable 10/ µm, up to 60 km

Protocol
CSMA / CD

Ports
1 x 1000Base-T
1 x 1000Base-LX (simplex SC-type)

Dip Switch
Fiber (forced / auto-negotation), LLR (enable / disable)

Transfer Rate
2000 Mbps (full-duplex)

Diagnostic LEDs
Per Unit: power
Per Port: link / activity

Power Adapter
7.5V DC, 1A external power adapter

Power Consumption
2.7 Watts (max)

Dimensions
120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.)

Temperature
Operating: 0° ~ 40°C (32° ~ 104°F)
Storage: -25° ~ 70°C (-13° ~ 158°F)

Humidity
Max 90% (non-condensing)

Certifications
CE, FCC

Media
SMF

Wavelength
TX: 1310nm
RX: 1550nm

Pout (dBm)
-7 ~ -2

Sensitivity
-23 ~ -2

Power
16

Distance
60m

3 Year Warranty
