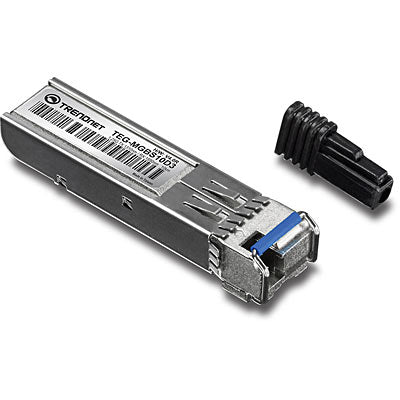

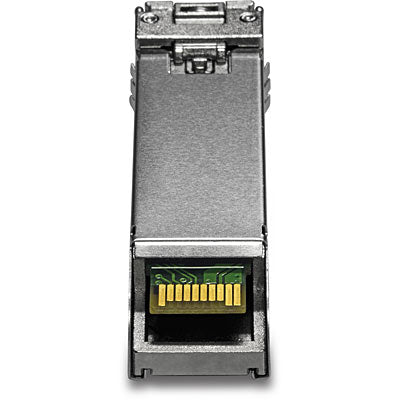

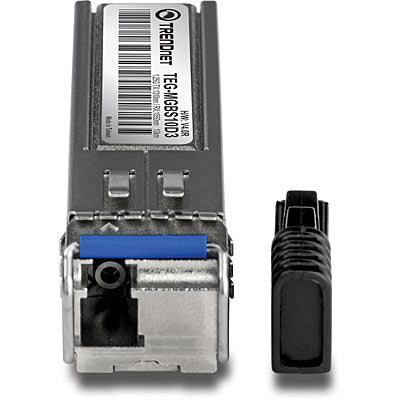

Trendnet Mini-GBIC Dual Wavelength Single-Mode LC Module

$69.86 $99.29

SKU: TEG-MGBS10D3
MODEL: Mini-GBIC Dual Wavelength Single-Mode LC Module
Product Description The hot-pluggable TEG-MGBS10D3 must be paired with the TEG-MGBS10D5 or other compatible module. This SFP Dual Wavelength Single Mode LC Type module spans distances of up to 10 kilometers (6.2 miles). The SFP interface is compatible with standard SFP slots and offers a 1000 Mbps-LX SFP interface. Product...
Quantity
Add to Wishlist

Product Description

The hot-pluggable TEG-MGBS10D3 must be paired with the TEG-MGBS10D5 or other compatible module. This SFP Dual Wavelength Single Mode LC Type module spans distances of up to 10 kilometers (6.2 miles). The SFP interface is compatible with standard SFP slots and offers a 1000 Mbps-LX SFP interface.

Product Details

Must pair with TEG-MGBS10D5 or other compatible module
Compliant with IEEE 802.3z
ANSI Fiber Channel compliant
Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
Supports data rate of up to 1.25 Gbps
Transmission distance of up to 10 km (6.2 miles)
Metal Enclosure with low Electromagnetic Interference (EMI) design
Simplex LC optical interface
Hot pluggable
Low power consumption



Specifications

Standards
IEEE 802.3z
ANSI Fiber Channel compliant
Class 1 Laser

Interface
SFP MSA Compliant
Simplex LC optical interface

Power Consumption
Max. 0.8 Watts

Dimension
57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)

Temperature
Operating: 0°C ~ 70°C (32°F ~ 158°F)
Storage: -40°C ~ 85°C (-40°F ~ 185°F)

Humidity
Max 85% (non-condensing)

Certifications
CE, FCC

Wavelength
TX: 1310 nm
RX: 1550 nm

Optical Output Power (dBm)
-9 ~ -3

Optical Input Power (dBm)
-23 ~ -3

Power Budget
-14

Distance
10 km

3 Year Warranty
