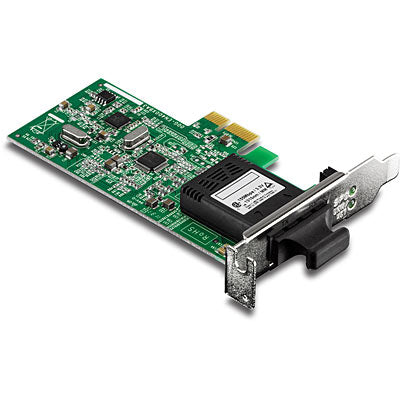

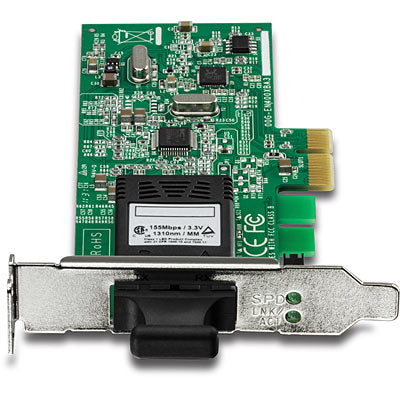

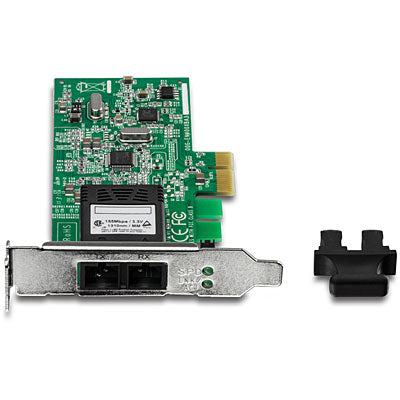

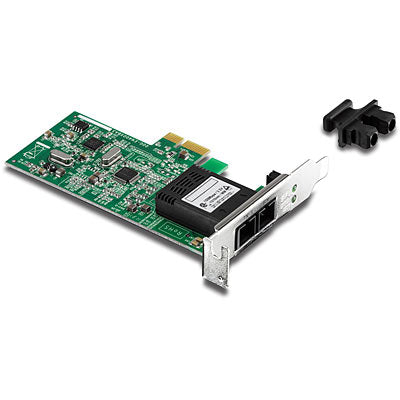

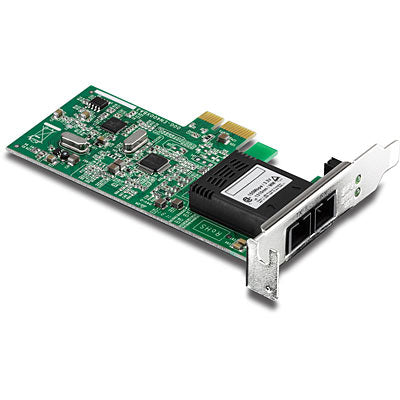

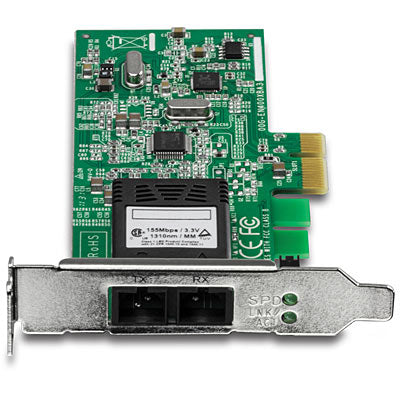

Trendnet Low Profile 100Base SC Fiber PCIe Adapter

$133.81 $190.57

SKU: TE 100-ECFXL
MODEL: Low Profile 100Base SC Fiber PCIe Adapter
Product Description The Low Profile 100Base SC Fiber PCIe Adapter, model TE100-ECFXL, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers (1.2 miles). Compatible with low profile form factor computers with an available PCI Express...
Quantity
Add to Wishlist

Product Description

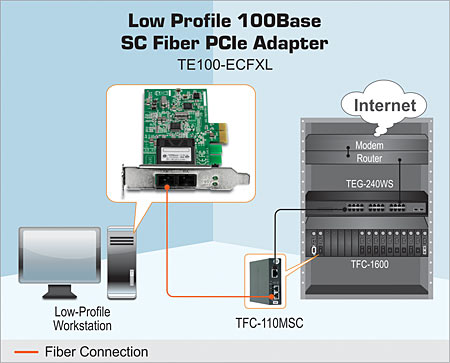

The Low Profile 100Base SC Fiber PCIe Adapter, model TE100-ECFXL, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers (1.2 miles). Compatible with low profile form factor computers with an available PCI Express slot.

Product Details

Full-Duplex technology generates data rates of up to 200 Mbps. Supports Wake-on-LAN, remote wake-up, 802.1p priority encoding, and 802.1Q VLAN tagging. Compatible with Microsoft Windows 10, Windows 8, Windows 7, Windows Server 2008 and Linux operating systems.



Compatible with Low Profile computers
1 x 100Base-FX SC-type fiber port
PCI Express 1.1 compliant
IEEE 802.1Q VLAN tagging
IEEE 802.1p Layer 2 priority tagging
IEEE 802.3x full-duplex Flow Control
Wake-on-LAN and remote Wake-up support
Plug and Play



Specifications

Standards

IEEE 802.3u 100Base-FX
IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p

Network Media
Multi-mode fiber optic cable 50/125 µm up to 550 m or 62.5/125 µm up to 2 km

Interface
PCI Express, SC-type slot

Power Consumption
Max 2 watts

Diagnostic LED
Speed, Link/Activity

Supported OS
Windows 10 (32/64-bit), Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2003, 2008
Linux Kernel 2.4.x/2.6.x

Data Rate
100 Mbps (half-duplex)
200 Mbps (full-duplex)

Dimension
80 x 107 x 57 mm (3 x 4.2 x 2.2 in.)

Temperature
Operating: 0°C ~ 50°C (32°F ~ 122°F)
Storage: -10°C ~ 70°C (14°F ~ 158°F)

Humidity
Up to 95% (non-condensing)

Certifications
CE, FCC

3 Year Warranty
