Trendnet Indoor/Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera

$807.09 $1,156.69

SKU: TV-IP440PI
MODEL: Indoor/Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera
Product Description TRENDnet’s Indoor/Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera, model TV-IP440PI, provides day and night surveillance with a night vision range of up to 100 meters (328 ft.) This speed dome network camera delivers year-round surveillance with an IP66 weather rated housing to withstand harsh environments....
Quantity
Add to Wishlist

Product Description

TRENDnet’s Indoor/Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera, model TV-IP440PI, provides day and night surveillance with a night vision range of up to 100 meters (328 ft.) This speed dome network camera delivers year-round surveillance with an IP66 weather rated housing to withstand harsh environments. A built-in 20x optical zoom lens allows you to adjust the field of view to meet your installation needs. Record 1080p video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage TRENDnet cameras with included complimentary software and mobile apps.

Product Details

PoE+


PoE offers cost savings and the flexibility to install this outdoor speed dome camera up to 100m (328 ft.) from the PoE+ source equipment.

Optical Zoom Lens


A built-in 20x optical zoom lens allows you to manually adjust the field of view from 58.3° – 3.2° to achieve the perfect viewing field for your installation.

Outdoor Ready


Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 65°C (-22° – 149°F).

Optical Zoom Lens


A built-in 20x optical zoom lens allows you to manually adjust the field of view from 58.3° – 3.2° to achieve the perfect viewing field for your installation

2 Megapixel
Record 1080p (1920 x 1080) HD video at 30 fps in the space saving H.264 compression format

Smart IR Night Vision
Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away. Night vision up to 100 meters (328 ft.)

Continuous PTZ
Endless 360° variable speed pan and 90° tilt with auto-flip

PoE+
Save installation costs with Power over Ethernet (PoE)

IP66 Rating
Outdoor IP66 weather rated housing

Additional Mounting Bracket Required
Separate mounting bracket required—install with TRENDnet’s TV-HC400, TV-HW400, TV-HP400, or TV-HN400

Storage
Record video to a network storage device or to a Micro SD card (up to 128GB sold separately)

Advanced Playback
Advanced in-camera archived video review functionality

Motion Detection
Create custom motion detection zones to record video and send email notifications when a zone is triggered

Tamper Detection
Create custom tamper detection zones to send an email notification when the camera view has been obstructed

Digital Wide Dynamic Range (D-WDR)
Adjustable D-WDR setting improves image quality and focusing when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

Recording Flexibility
Define custom schedules using continuous (24/7) and/or event based recording modes

Audio Support
Audio input/output for third party microphone and speaker (sold separately)

IPv6
IPv6 support

ONVIF
ONVIF Profile S

Complimentary Software
Complimentary pro-grade software to manage TRENDnet cameras

Specifications

Lens
Focal length: 4.7 - 94 mm
Focal depth: 10 – 1,000 mm (Wide-Tele)
Aperture: F1.6 – 3.5 (Wide - Tele)
Sensor: 1/2.8” Progressive Scan CMOS
Focus: auto, semi-auto, and manual

Viewing Angle
Horizontal: 58.3 – 3.2° (Wide – Tele)

Zoom
Optical: 20x
Digital: 16x
Speed: 3s

Pan/Tilt
Pan: endless 360°
Tilt: -15 - 90° (auto flip)
Pan speed: (manual) 0.1 - 80°/s, (preset) 80°/s
Tilt speed: (manual) 0.1 - 80°/s, (preset) 80°/s
Number of presets: 300
Patrol: 8 patrols, up to 32 presets per patrol

Minimum Illumination
IR off: color: 0.05 lux, B/W: 0.01 lux
IR on: 0 lux
100 m IR illumination distance
Smart IR: automatically adjusts wide angle and narrow focus IR to match zoom ratio

Video
Digital Wide Dynamic Range (DWDR)
Backlight Compensation (BLC)
3D Digital Noise Reduction (DNR)
Shutter speed: 1 - 1/10,000s
H.264 resolution: 1920 x 1080 up to 25 fps
MJPEG resolution: 1920 x 1080 up to 25 fps

Audio
2-way audio supported (mic and speaker not included)
External microphone line in / speaker line out

Micro SD
Up to 128 GB micro SD card support

Hardware Standards
IEEE 802.1X
IEEE 802.3
IEEE 802.3u
IEEE 802.3at

Device Interface
10/100 Mbps PoE+ port
Power connector (for non-PoE installation)
Audio I/O port (in/out/ground)
Micro SD card slot (128GB max.)

Input / Output
Audio input: 1 audio line in, 2 – 2.4 V; impedance: 1000 Ω, ± 10%
Audio output: 1 output line out, impedance: 600 Ω

Housing
Weather rating: IP66
TVS 4,000 V lightning, surge, and voltage transient protection
Built-in automatic heater for cold weather conditions

Network Protocol
IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
CIFS/SMB, NFS
HTTP, HTTPS
PPPoE
UPnP, RTSP, RTP

Power
Input: PoE+ (IEEE 802.3at)
Consumption: Max. 20W

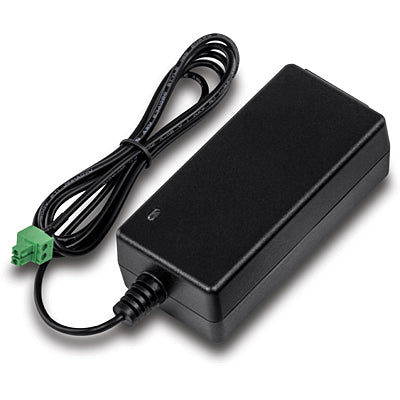

Optional Power Brick
Input: 100 – 240V AC , 50/60Hz 1.6A
Output: 12V DC, 2A external power brick
Required regional power cord not included

Operating Temperature
-30 - 65 °C (-22 - 149 °F)

Operating Humidity
Max. 90% non-condensing

Certifications
CE
FCC

Dimensions
295 x 165 x 165 mm (11.6 x 6.5 x 6.5 in.)

Required Mounting Accessories (not included)
Ceiling mount: TV-HC400
Pole mount: TV-HP400
Wall mount: TV-HW400
Corner mount: TV-HN400

Management Interface
Multi-language support: English, French, German, Spanish and Portuguese
Time, date, and text overlay
Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, smart IR, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, Defog mode, zoom limit, HLC
DWDR enhances video quality in high contrast daytime lighting
3D DNR Digital Noise Reduction enhances night vision quality
Scheduled recording: continuous and motion detection
Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software
Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts
Tamper detection: email notification if the viewing field is suddenly obscured
Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
Alert messages: storage full, storage error, and illegal login
Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule
Supported dynamic DNS services: dyn.com and No-IP.org
Management Setting: maximum 32 user accounts
Supports remote management
Storage logs: Alarm, Exception, Operation, and others
Compatibility: Internet Explorer® 9.0 or higher, Safari® 5.0 or higher

TRENDnetVIEW Pro Software
Supports up to 16 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows® 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008, 2012

TRENDnetVIEW App
Free iOS® and Android™ app
View your camera on your mobile device
Take snapshots
Pan/Tilt/Zoom


3 Years Limited Warranty
