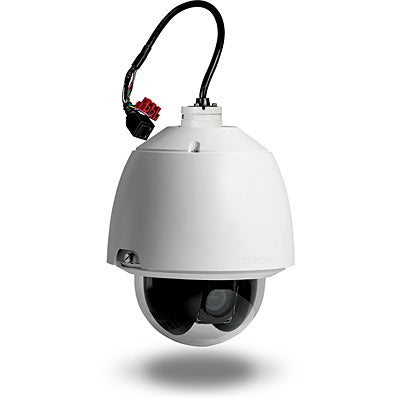

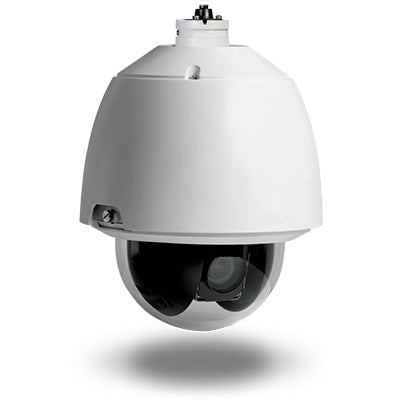

Trendnet Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera

$1,088.49 $1,560.96

SKU: TV-IP450P
MODEL: Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
Product Description TRENDnet’s Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera, model TV-IP450P, offers powerful 20x optical zoom, low light sensor, an IP66 weather rating, and endless 360 degree PTZ functionality. Record 1.3 Megapixel HD video (1280 x 960) at 30 fps in a space saving H.264 compression format....
Quantity
Add to Wishlist

Product Description

TRENDnet’s Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera, model TV-IP450P, offers powerful 20x optical zoom, low light sensor, an IP66 weather rating, and endless 360 degree PTZ functionality. Record 1.3 Megapixel HD video (1280 x 960) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps. A separate mounting bracket is required—install with TRENDnet’s TV-HC400, TV-HW400, TV-HP400, or TV-HN400.


Product Details

Powerful Zoom

20x optical zoom and 16x digital zoom combine for a total 320x zoom factor with autofocus

Low Light Vision
Provides visibility in extremely low light conditions (0.05 Lux rated)

Continuous PTZ
Endless 360° variable speed pan tilt zoom and user defined 3D zoom within the graphical user interface

Outdoor Rated
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F)

PoE+
Includes a PoE+ injector (30 Watts)

Additional Mounting Bracket Required
Separate mounting bracket required—install with TRENDnet’s TV-HC400, TV-HW400, TV-HP400, or TV-HN400

1.3 Megapixel HD
Record 1280 x 960 at 30 fps in the space saving H.264 compression format

Auto Patrol
Choose pre-defined or program up to eight auto patrol sequences with varying zoom levels

Storage
Record video to a Samba client or to a Micro SD card (up to 64 GB sold separately)

Tamper Detection
Receive tamper detection snapshots via email

D-WDR
Improved image quality and autofocus in high contrast lighting environments with Digital Wide Dynamic Range technology

Motion Detection
Create motion detection windows with separate sensitivity settings and event triggers

Recording Schedule
Define a weekly recording schedule

IPv6
IPv6 support

ONVIF
ONVIF compliant

Complimentary Software
Complimentary pro-grade software to manage up to 32 TRENDnet cameras

Complimentary Apps
Live video to a mobile device with free Apple® and Android™ apps

Specifications

Lens

Focal length: 4.7 - 94 mm
Focal depth: 10 - 1000 mm (Wide-Tele)
Aperture: F1.4 - 3.5 (Wide-Tele)
Sensor: 1/3” Progressive Scan CMOS
Focus: auto/semi-auto/manual
Iris control: auto and manual

Viewing Angle
Horizontal: 54°

Zoom
Combined zoom factor: 320x
Optical: 20x
Digital: 16x
Speed: 3s

Pan/Tilt
Pan: endless 360°
Tilt: -5 - 90° (auto-flip)
Pan speed: (manual) 0.1 - 250°/s, (preset) 300°/s
Tilt speed: (manual) 0.1 - 150°/s, (preset) 200°/s
Number of presets: 256
Patrol: 8 patrols, up to 32 presets per patrol
Scheduled PTZ: create detailed weekly schedule with the following activity options: auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, and dome adjust

Minimum Illumination
Color: 0.05 lux
B/W: 0.01 lux

Video
D-WDR: 128x
Shutter speed: 1 - 1/10,000s
H.264 resolution: 1280 x 960 up to 30 fps
MJPEG resolution: 704 x 480 up to 30 fps

Audio
2-way audio
External microphone line in / speaker line out (mic and speaker not included)

Hardware Standards
IEEE 802.1x
IEEE 802.3
IEEE 802.3u
IEEE 802.3at

Device Interface
10/100 Mbps PoE+ port
Power connector (for non-PoE installation)
Audio wires (in/out/ground)
Micro SD card slot
Suspension cable secures camera during installation

Housing

Weather rating: IP66

Network Protocol
IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
CIFS/SMB, NFS
HTTP, HTTPS
PPPoE
UPnP, RTSP, RTP

Operating Temperature
-30 - 65 °C (-22 - 149 °F)

Operating Humidity
Max. 90% non-condensing

Certifications
CE, FCC

Dimensions
220 x 305 mm (8.7 x 12 in.)


Power
Input: 100~240V AC, 50/60 Hz, 2A
Output: 56V DC, 30W (PoE+)
Consumption: 22 Watts/14 Watts max. (heater on/off)

Required Mounting Accessories (not included)
Ceiling mount: TV-HC400
Pole mount: TV-HP400
Wall mount: TV-HW400
Corner mount: TV-HN400

Management Interface
Multi-language support: English, French, German, Russian, and Spanish
IP address filter
QoS traffic prioritization
Time, date, and text overlay
Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, zoom limit, HLC
D-WDR enhances video quality in high contrast daytime lighting
3D DNR Digital Noise Reduction enhances night vision quality
Scheduled recording: continuous and motion detection
Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software
Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts
Tamper detection: email notification if the viewing field is suddenly obscured
Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
Alert messages: storage full, storage error, and illegal login
Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule
Supported dynamic DNS services: dyn.com and No-IP.org
Management Setting: maximum 32 user accounts
Supports remote management
Storage logs: Alarm, Exception, Operation, and others
Compatibility: Internet Explorer® 9.0 or higher, Firefox® 13.0 or higher, Safari® 4.0 or higher, Chrome™ 24.0 or higher

TRENDnetVIEW Pro Software
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008

TRENDnetVIEW App
Free Apple® and Android™ app
View your camera on your mobile device
Take snapshots
Pan/ Tilt / Zoom

3 Years Limited Warranty
