Trendnet Outdoor PoE 2MP Varifocal Day/Night Network Camera

$324.51 $464.43

SKU: TV-IP341PI
MODEL: Outdoor PoE 2MP Varifocal Day/Night Network Camera
Product Description The Indoor / Outdoor 2 MP 1080p Varifocal PoE IR Dome Network Camera, model TV-IP341PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This dome network camera delivers year-round surveillance with an IP66 weather rated housing to withstand extreme...
Quantity
Add to Wishlist

Product Description

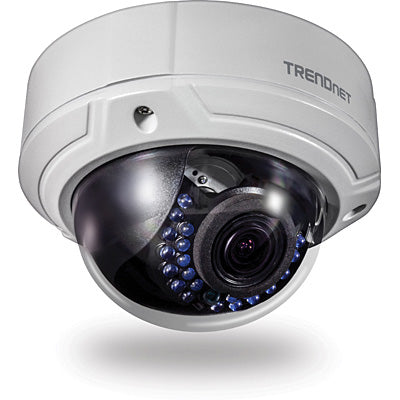

The Indoor / Outdoor 2 MP 1080p Varifocal PoE IR Dome Network Camera, model TV-IP341PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This dome network camera delivers year-round surveillance with an IP66 weather rated housing to withstand extreme environments. A built-in 2.8 - 12 mm manual zoom varifocal lens allows you to adjust the field of view to meet your installation needs. Record 1080p video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps.

Product Details

Varifocal Lens
A built-in 2.8 – 12 mm manual zoom varifocal lens allows you to manually adjust the field of view from 113° – 33.8° to achieve the perfect viewing field for your installation.


Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this outdoor dome camera in the desired location.



Outdoor Ready
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 60°C (-22 – 140°F).


A built-in 2.8 – 12 mm manual zoom varifocal lens allows you to adjust the field of view from 113° – 33.8° to achieve the perfect viewing field for your installation.

Record 1080p (1920 x 1080) HD video at 30 fps in the space saving H.264 compression format

Night vision up to 30 meters (98 ft.)

Dynamic IR adjustment optimizes night visibility

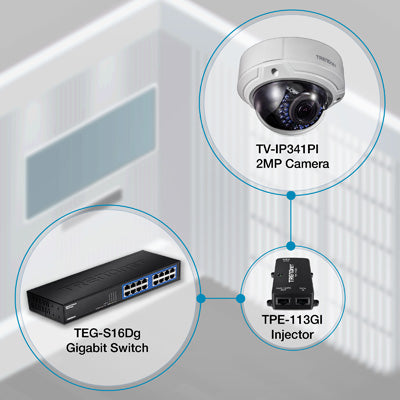

Save installation costs with Power over Ethernet (PoE)

Outdoor IP66 weather rated housing

Record video to a network storage device or to a Micro SD card (up to 64 GB sold separately).

Advanced in-camera archived video review functionality

Create custom motion detection zones to record video and send email notifications when a zone is triggered.

Create custom tamper detection zones to send an email notification when the camera view has been obstructed.

Adjustable D-WDR setting Improves image quality and focusing when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.

Define custom schedules using continuous (24/7) and/or event based recording modes.

Audio input and output for third party microphone and speaker (sold separately)

Network to an alarm system with the alarm input / output connections

BNC analog video-out port to connect directly to a video display for installation flexibility

IPv6 support

ONVIF Profile S, Profile G and PSIA compliant

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

Live video to a mobile device with free iOS® and Android™ apps

Product Specification


Lens
Focal Length: 2.8 – 12 mm @ F1.4
Focal depth: 30 cm to infinity

Lens: Varifocal
Sensor: 1/3” CMOS sensor
Digital WDR
Digital zoom: 4x

Viewing Angle
Horizontal: 33.8 ˚ - 113˚
Pan : 0 ˚ - 355 ˚
Tilt : 0 ˚ - 75 ˚

Minimum Illumination
IR off: 0.014 lux
IR on: 0 lux
30 m distance
IR wavelength : 850 nm
Resolution
H.264: 1920 x 1080 up to 30 fps
MJPEG: 704 x 480 up to 30 fps

Hardware Standard
IEEE 802.1x
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af

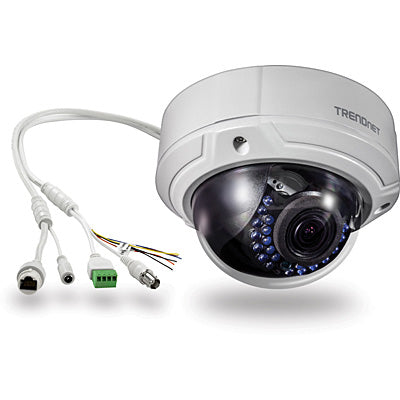

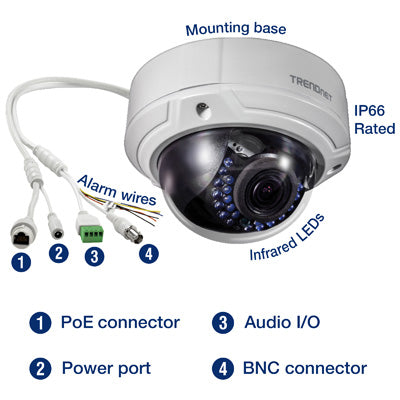

Device Interface
10 / 100 Mbps PoE port

Micro SD card slot
IR LEDs
GPIO terminal for audio
I / O for alarm
Power jack

Audio
2-way audio supported (mix and speaker not included)
External microphone line in / speaker line out
3D DNR
I / O
External input / output for alarm installation

Micro-SD slot
Supports Micro SD / SDHC / SDXC
Up to 64 GB
IP66 rated
Direct cabling through the bottom or side of housing

Network Protocol
IPv4, IPv6, UDP, TCP / IP, ONVIF, SPIA
DHCP, NTP, DDNS, SMTP, FTP, LLTD
SNMP v1-v3, QoS / DSCP, IEEE 802.1X
NFS, SMB / CIFS, Bonjour
HTTP, HTTPS
PPPoE
UPnP, RTSP, RTP

Dimension
Camera: 140 x 100 mm (5.5 x 4 in.)

Weight
745 g (1.1 lbs.)

Operating Temperature
-30 – 60 °C (-22 – 140 °F)

Humidity
Max. 95% non-condensing

Power
Input: PoE
Consumption: 5.5 W max.
Power (Power adapter not included)
Input: 100 - 240 V AC , 50 / 60 Hz, 1 A
Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
TRENDnet power adapter, model 12VDC1A, sold separately

Management Interface
Multi-language support: English, French, German, Spanish and Portuguese
IP address filter
QoS traffic prioritization
Time, date, and text overlay
Image settings: brightness, contrast, hue, sharpness, D-WDR, Denoise 2D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, mirror, 90 degree rotate, IR, day / night mode, white balance
D-WDR enhances video quality in high contrast daytime lighting
2D Digital Noise Reduction enhances night vision quality
Recording: to computer, NAS, SAMBA, or through software
Video Recording: scheduled, motion detection, sound detection, and tamper detection
Motion detection: define up to three motion detection areas and motion sensitivity
Privacy masks: define custom privacy mask up to 3 areas
Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly
Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
Snapshot: real time snapshot, sound detection, and motion detection
Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
Management setting: maximum 21 user accounts
Supports remote management
Compatibility (PC based): Internet Explorer® 8.0 or higher

TRENDnetVIEW Pro Software
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Advanced search and playback tools
Custom viewing modes and options
Compatibility: Windows® 10, 8.1, 8, 7, and Windows Server® 2003, 2008, 2012

TRENDnetVIEW App
Free iOS™ and Android™ app
View the camera on a mobile device

Take snapshots
Zoom

Certifications
CE
FCC

3 years Limited warranty
